ChromaChecker™ Print Inspector PI-64 Control Strip
Multipurpose control strip for overall system analysis, simple G7 and TVI calibration (3 points). Consists of 64 patches.
First patch wider for easier scanning start.
single line – eXact / Alwan Print Verifier
patch width = 4 mm, patch height = 10 mm / total size: 300 x 10 mm
patch width = 5 mm, patch height = 10 mm / total size: 370 x 10 mm
patch width = 5,6 mm, patch height = 10 mm / total size: 420 x 10 mm
if necessary, height can be reduced as necessary (larger height makes for easier scanning by a operator)
dual line – X-Rite i1 Pro1 / 2, eXact / Alwan Print Verifier, i1Profiler
patch width = 7.5 mm, patch height = 10 mm / total size: 326 x 20 mm (i1Pro, eXact)
patch width = 7.5 mm, patch height = 8 mm / total size: 286 x 16 mm (eXact)
Download files for: ChromaChecker_PI64_2R-V1
ChromaChecker™ TVI-6C-33
CMY:10, 20, 40, 60, 80, 90, K: 10, 15, 25, 50, 75, 90%, primaries and secondaries solids
single line TVI CMYK calibration control strip (Alwan Print Verifier, i1Profiler, PatchTool)
patch width = 7.8 mm, patch height = 7.8 mm / total size: 290 x 7,8 mm (i1Pro, eXact...)
patch width = 6 mm, patch height = 7.8 mm / total size: 222 x 7,8 mm (eXact...)
patch width = 4 mm, patch height = 6 mm / total size: 148 x 6 mm (eXact...)
ChromaChecker™ TVI-11-60
TVI CMYK calibration control strip (APV, i1Profiler, PatchTool) - 60 patches
CMY: 5, 10, 20, 30, 40, 50, 60, 70, 80, 90, 95,
K: 2, 5, 10, 15, 20, 25, 30, 40, 50, 60, 70, 75, 80, 90, 95, 98%,
Primaries and secondaries solids, G7 greys: 25, 50, 75, 100
Single row TVI CMYK calibration control strip (Alwan Print Verifier, eXact)
patch width = 5 mm, patch height = 9 mm / total size: 320 x 9 mm (eXact...)
Download files for: TVI-11-60_1R
Two rows (i1 Pro 1/2 / i1 Profiler, Patch Tool; APV/ eXact Scan)
patch width = 8 mm, patch height = 9 mm / total size: 276 x 18 mm (eXact, i1Pro)
Download files for: TVI-11-60_2R
ChromaChecker™ TVI-21-96
TVI CMYK calibration control strip (APV, i1Profiler, PatchTool)
CMYK: 2, 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 98%
Primaries and secondaries solids, G7 greys: 25, 50, 75, 100.
Single row (APV/ eXact Scan)
patch width = 4,3 mm, patch height = 9 mm / total size: xxx x 9 mm (eXact...)
Two rows (APV/ eXact Scan)
patch width = 5 mm, patch height = 7.8 mm / total size: 222 x 7,8 mm (eXact...)
Three rows (i1 Pro 1/2 / i1 Profiler, Patch Tool; APV/ eXact Scan)
patch width = 7.8 mm, patch height = 8 mm / total size: 290 x 7,8 mm (i1Pro, eXact...)
ChromaChecker™ MW-72 Control Strip (proof cert. EU)
X-Rite eXact – single line / Alwan Print Verifier
patch width = 4 mm, patch height = 10 mm / total size: 288 x 7 mm
ChromaChecker™ MW-84 Control Strip (proof cert. US)
X-Rite eXact – single line / Alwan Print Verifier
patch width = 4 mm, patch height = 10 mm / total size: 336 x 7 mm

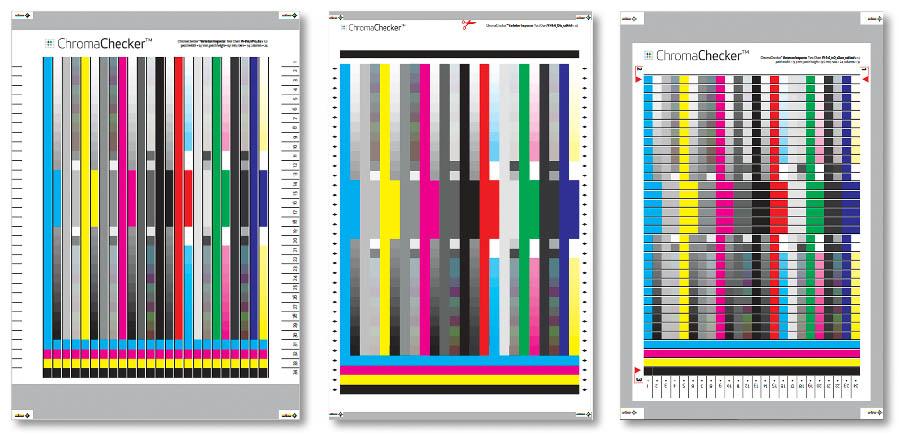

ChromaChecker™ Variation Inspector VI-816 Test Chart (full page A3/tabloid)
i1Pro / APV, Patch Tool iSis XL / ColorPort i1iO / i1Profiler, eXact / APV
width = 9.7 / height = 9,7 mm width = 10.5 / height = 10,2 mm width = 9.3 / height = 9,0 mm
Download files for ChromaChecker™ Variation Inspector VI-816 Test Form

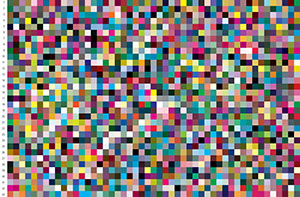

IT8 7-4 random (rotated)
X-Rite eXact Scan / APV
patch width = 7 / patch height = 7 mm ( total size 350x230 mm)
